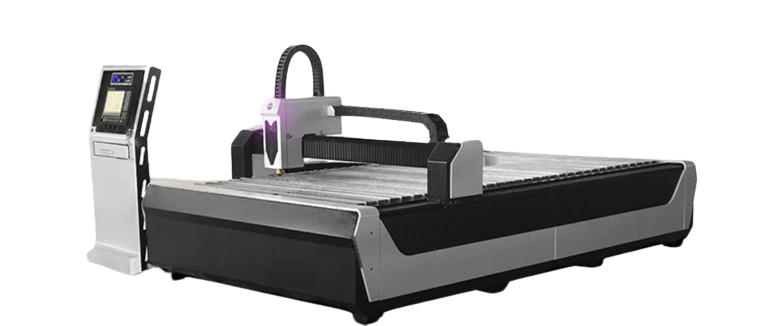

台式数控切割机

双边驱动，运行稳定

数控系统自带47个图形，只管修改尺寸，就可以切割

配伺服传统系统，切割精度较高

正版套料软件，可共边可桥接，可连割’

整机质保一年，售后无忧

常规机型：3015，4020，6020，6025

技术参数(Technical parameters)

设备特点(Equipment Characteristics)：

1、GT系列台式数控切割机，适用于等离子及火焰切割形式；
2、这款机型市场性价比高，操作简单易学，采用一体式切割工作
平台和接料斗，可采用半干式除尘方式，或选配除尘系统，减少机器切割时产生的烟尘及有害气体等；
3、横向移动由导轨导向，通过伺服电机带动精密齿轮箱，输出齿轮与精密齿轮啮合，保证整机运行平稳，切割精度高；
4、本机广泛应用于机械制造、金属加工行业，适合于碳钢、不锈钢，铝板及有色金属等板材的高速复杂图形切割。
GT series desktop CNC cutting machine, suitable for plasma and flame cutting forms
This model has a high cost-effectiveness in the market, simple and easy to learn operation, and adopts an integrated cutting work
The platform and hopper can adopt a semi dry dust removal method or be equipped with a dust removal system to reduce the smoke, dust, and harmful gases generated during machine cutting
The lateral movement is guided by the guide rail and driven by a servo motor to drive the precision gearbox. The output gear meshes with the precision gear, ensuring smooth operation of the entire machine and high cutting accuracy
This machine is widely used in the mechanical manufacturing and metal processing industries, suitable for high-speed and complex graphic cutting of carbon steel, stainless steel, aluminum plates, and non-ferrous metal plates

横向有效行程（mm） Lateral effective travel	1500/2000/2500
纵向有效行程（mm） Longitudinal effective stroke (mm)	3000/4000/6000
等离子割矩组数 Number of plasma cutting moment groups	1
火焰割矩组数 Number of flame cutting moment groups	1
空程速度（mm/min） Air travel speed	12000
等离子切割速度（mm/min） Plasma cutting speed	视等离子电源型号而定 Depending on the plasma power supply model
